Utils:

Utility functions for aopy data management and analysis

This module contains functions for ancillary but extracategorical tasks commonly emerging in neural data analysis tasks.

API

Utils base

aopy.utils.base.calc_euclid_dist_mat(pos)

Calculates a matrix of euclidean distance. Each entry in the matrix is the distance between ith and jth position

Parameters:

pos (nch,2) – x, y position list, e.g. for each electrode

Returns:

distance between each given position

Return type:

(nch, nch) array

aopy.utils.base.calc_radial_dist(pos, origin=(0, 0))

Calculates a matrix of radial distance from a given origin. Each entry in the matrix is the distance between ith and jth electrode channel

Parameters:

• pos (nch,2) – x, y position list, e.g. for each electrode

• origin (2,) – point from which to calculate radial distance

Returns:

radius between each given position and the origin

Return type:

(nch,) array

aopy.utils.base.compute_pulse_duty_cycles(edge_pairs)

Parameters:

edge_pairs (npulse, 2) – start, end times from a series of pulses

Returns:

duty cycle of each pulse. Pulse period assumed to be constant.

Return type:

duty_cycle (npulse)

aopy.utils.base.convert_analog_to_digital(analog_data, thresh=0.3)

This function takes analog data and converts it to digital data given a threshold. It scales the analog to between 0 and 1 and uses thres as a

Parameters:

• analog_data (nt, 1) – Time series array of analog data

• thresh (float, optional) – Minimum threshold value to use in conversion

Returns:

Array of 1’s or 0’s indicating if the analog input was above threshold

Return type:

(nt, nch)

aopy.utils.base.convert_channels_to_digital(data_channels)

Converts binary channels from eCube into 64-bit digital data.

Parameters:

data_channels (n, 64) – where channel 0 is least significant bit

Returns:

masked 64-bit data, little-endian

Return type:

aopy.utils.base.convert_channels_to_mask(channels)

Helper function to take a range of channels into a bitmask

Parameters:

channels (int array) – 0-indexed channels to be masked

Returns:

binary mask of the given channels

Return type:

int

aopy.utils.base.convert_digital_to_channels(data_64_bit)

Converts 64-bit digital data from eCube into channels.

Parameters:

data_64_bit (n) – masked 64-bit data, little-endian

Returns:

where channel 0 is least significant bit

Return type:

(n, 64)

aopy.utils.base.convert_port_number(port_number, datatype='ap')

convert port_number to directory name made by openephys

Parameters:

• port_number (int) – port number which a probe connected to. natural number from 1 to 4.

• datatyoe (str, optional) – datatype of neuropixel. ‘ap’ or ‘lfp’

Returns:

Probe directory name that contains AP data

Return type:

probe_dir (str)

aopy.utils.base.copy_edges_forwards(data, n_steps, truncate_edges=False, copy_per_step=False, axis=0)

Forces pulses to have a fixed width of eactly n_steps. First, find the rising edges of the data, then copy them forwards n_steps times. Works across multiple channels simulatenously.

Parameters:

• data ((nt,) or (nt, nch)) – digital data

• n_steps (int) – how many timesteps should pulses be

• truncate_edges (bool, optional) – if True, then edges will always be set to n_steps length. If false, then edges that are longer than n_steps will remain the same length. Default False.

• copy_per_step (bool, optional) – copy edges one step at a time or one edge at a time; changes processing time but output stays the same. If there are long edges, the default option False is faster. If there are a lot of short edges, then setting copy_per_step=True will be faster. Default False.

• axis (int, optional) – along which axis to copy edges. Default 0.

Returns:

digital data but with fixed pulse widths

Return type:

(nt,) or (nt, nch)

Note

Only works for 1- or 2-D arrays

aopy.utils.base.count_repetitions(arr, diff_thr=0)

Counts the number of repetitions in an array. Always counts the first and last element of the array as different from before and after the array.

Parameters:

• arr (nt,) – The input array. Only supports 1d arrays.

• diff_thr (numeric, optional) – Minimum step size in the data.

Returns:

A tuple of two numpy arrays: | repetitions (nt,): Lengths of the repetitions in the input array, | change_idx (nt,): Indices where the repetitions start

Return type:

tuple

aopy.utils.base.count_unique_symbols(files)

Utility for counting how many times each unique symbol is listed in the given list and ranking them by descending number of uses.

Parameters:

files (list) – list of filenames containing symbols generated by vscode ‘List Symbols’

Returns:

tuple containing:

unique_symbols (list): list of unique symbols

counts (list): list of counts for each unique symbol

Return type:

tuple

aopy.utils.base.derivative(x, y, norm=True)

Computes the derivative of y along x.

Parameters:

• x (nt) – independent variable, e.g. time

• y (nt, ...) – dependent variable, e.g. position

• norm (bool, optional) – also compute the norm of y if it is multidimensional (default True). Set to false to output component wise derivative.

Returns:

derivative of y

Return type:

nt

aopy.utils.base.detect_edges(digital_data, samplerate, rising=True, falling=True, check_alternating=True, min_pulse_width=None)

Finds the timestamp and corresponding value of all the bit flips in data. Assumes the first element in data isn’t a transition

By default, also enforces that rising and falling edges must alternate, always taking the last edge as the most valid one. For example:

>>> data = [0, 0, 3, 0, 3, 2, 2, 0, 1, 7, 3, 2, 2, 0]
>>> ts, values = detect_edges(data, fs)
>>> print(values)
[3, 0, 3, 0, 7, 0]

Parameters:

• digital_data (ntime x 1) – masked binary data array

• samplerate (int) – sampling rate of the data used to calculate timestamps

• rising (bool, optional) – include low to high transitions

• falling (bool, optional) – include high to low transitions

• check_alternating (bool, optional) – if True, enforces that rising and falling edges must be alternating. An edge is valid when it is no longer rising or falling.

• min_pulse_width (float, optional) – if not None, makes sure rising edges are followed by a minimum pulse width before calculating edge values

Returns:

tuple containing:

timestamps (nbitflips): when the bits flipped

values (nbitflips): corresponding values for each change

Return type:

tuple

aopy.utils.base.digitize_by_angle(vectors, start_angle=0.7853981633974483, clockwise=True, bins=4)

Bin 2D vectors into angular bins.

Parameters:

• vectors (ntarg) – List or array of 2D vectors.

• start_angle (float, optional) – Starting angle for binning in radians. Default is -pi/4.

• clockwise (bool, optional) – If True, bins are assigned in clockwise order. The first bin is ahead of the start angle in this direction. Default is True.

• bins (int, optional) – Number of angular bins. Default is 4.

Returns:

Array of bin indices corresponding to each vector.

Return type:

(ntarg,) int

aopy.utils.base.extract_barcodes_from_times(on_times, off_times, inter_barcode_interval=30, bar_duration=0.017, barcode_duration_ceiling=2, nbits=32)

Read barcodes from timestamped rising and falling edges. This function came from the openephys repository

Notes

ignores first code in prod (ok, but not intended) ignores first on pulse (intended - this is needed to identify that a barcode is starting)

Parameters:

• on_times (ndarray) – Timestamps of rising edges on the barcode line

• off_times (ndarray) – Timestamps of falling edges on the barcode line

• inter_barcode_interval (float) – Minimun duration of time between barcodes.

• bar_duration (float) – A value slightly shorter than the expected duration of each bar

• barcode_duration_ceiling (float) – The maximum duration of a single barcode

• nbits (int) – The bit-depth of each barcode

Returns:

tuple containing:

barcode_start_times (list): For each detected barcode, the time at which that barcode started

barcodes (list of int): For each detected barcode, the value of that barcode as an integer.

Return type:

tuple

aopy.utils.base.extract_bits(data, mask)

Apply bit mask and shift data to the least significant set bit in the mask. For example, extract_bits(0001000011110000, 1111111100000000) => 00010000 extract_bits(0001000011110000, 0000000011111111) => 11110000 extract_bits(0001000011001100, 0000001111001111) => 00111100

Parameters:

• data (ntime) – digital data

• mask (int) – which bits to filter

Returns:

masked and shifted data

Return type:

(nt)

aopy.utils.base.first_nonzero(arr, axis=0, all_zeros_val=-1)

Helper function to find the first non-zero element in an array

Parameters:

• arr (ndarray) – array containing zeros

• axis (int, optional) – axis along which to compute the first nonzero. Defaults to 0.

• all_zeros_val (float, optional) – value to indicate no nonzero elements were found. Defaults to -1.

Returns:

array of indices with one less dimension than the input

Return type:

ndarray

aopy.utils.base.generate_multichannel_test_signal(duration, samplerate, n_channels, frequency, amplitude)

Generate sine waves offset in phase by 2*pi/n_channels at the given amplitude and frequency

Parameters:

• duration (float) – time in seconds

• samplerate (int) – sampling rate of the signal in Hz

• n_channels (int) – number of channels to generate

• frequency (float) – frequency in Hz

• amplitude (float) – amplitude of each sine wave

Returns:

timeseries data across channels

Return type:

(nt, nch) array

aopy.utils.base.generate_poisson_timestamps(mu, max_time, min_time=0.0, refractory_period=0.0)

Generate timestamps following a Poisson process with mean time between events mu, with a specified minimum refractory period, and that fall within a specified time window. The number of timestamps generated is determined by the time window and the mean time between events and cannot be specified directly. The generated timestamps are random but can be repeated by setting the random seed using np.random.seed().

Parameters:

• mu (float) – Mean time between events in seconds.

• max_time (float) – End time of the window in seconds.

• min_time (float, optional) – Start time of the window in seconds. Default 0.

• refractory_period (float, optional) – Minimum refractory period between events in seconds. Default 0.

Returns:

Array of timestamps within the specified time window.

Return type:

np.ndarray

Note

The distribution is not guaranteed to be poisson when the refractory period is nonzero. As the refractory period increases, the distribution will approach a uniform distribution.

aopy.utils.base.generate_test_signal(duration, samplerate, frequencies, amplitudes, noise_amplitude=0.0)

Generates a test time series signal with multiple frequencies, specified in freq, for T timelength at a sampling rate of fs

Parameters:

• duration (float) – time period in seconds

• samplerate (int) – sampling frequency in Hz

• frequencies (1D array) – list of frequencies to be mixed in the test signal

• amplitudes (1D array) – list of amplitudes for each frequency

• noise_amplitude (float, optional) – amplitude of noise added on top of test signal

Returns:

Tuple containing:

x (1D array): cosine wave with multiple frequencies (and noise)

t (1D array): time vector for x

Return type:

tuple

aopy.utils.base.get_consecutive_days(dates)

Find consecutive days in a list of dates.

Parameters:

dates (list of datetime) – list of dates to check for consecutive days

Returns:

each sublist contains a list of consecutive dates

Return type:

list of lists

aopy.utils.base.get_edges_from_onsets(onsets, pulse_width)

This function calculates the values and timepoints corresponding to a given time series of pulse onsets (timestamp corresponding to the rising edge of a pulse). :param onsets: Time point corresponding to a pulse onset. :type onsets: nonsets :param pulse_width: Pulse duration :type pulse_width: float

Returns:

tuple containing:

timestampes (2*nonsets + 1): Timestamps of the rising and falling edges. Always starts at 0.

values (2*nonsets + 1): Values corresponding to the output timestamps.

Return type:

tuple

aopy.utils.base.get_first_last_times(barcode_on_times, barcode_on_times_main, barcode, barcode_main)

Get the first and last time when barcodes (sync pulses) come to each stream.

Parameters:

• barcode_on_times (n_times) – the times at which barcode comes to the auxiliary stream

• barcode_on_times_main (k_times) – the times at which barcode comes to the main stream

• barcode (n-length list) – Unique barcode number in the auxiliary stream

• barcode_main (k-length list) – Unique barcode number in the main stream

Returns:

tuple containing:

first_last_times (2): barcode on_times that corresponds to the first and last barcode in the recording

first_last_times (2): barcode on_times in the main stream that corresponds to the first and last barcode in the recording

Return type:

tuple

aopy.utils.base.get_pulse_edge_times(digital_data, samplerate)

Parameters:

• digital_data (nt, 1) – array of data from ecube digital panel

• samplerate (numeric) – data sampling rate (Hz)

Returns:

start and end times from each detected pulse

Return type:

edge_times (npulse, 2)

aopy.utils.base.max_repeated_nans(a)

Utility to calculate the maximum number of consecutive nans

Parameters:

a (ndarray) – input sequence

Returns:

max consecutive nans

Return type:

int

aopy.utils.base.multiply_mat_batch(data, mat, save_path, scale=1, max_memory_gb=1.0, dtype='int16', min_batch_size=0)

Multiply a matrix to data in each batch to save memory. The result is saved in save_path. This function can be used to multiply an inverse matrix by spike band time series.

Parameters:

• data (nt, nch) – neural data. This should be a memory mapping array.

• mat (anysize, nch) – matrix to multiply by data

• save_path (str) – file path to save destriped lfp data

• scale (float, optional) – Scaling factor to multiply by data. 1/200 is necessary for whitened data in kilosort4. default is 1.

• max_memory_gb (float) – memory size in GB to determine batch size. default is 1.0 GB.

• dtype (str, optional) – dtype for data. default is int16.

• min_batch_size (int) – the number of size in integer to ensure that batch size is more than min_batch_size. default is 0.

Returns:

None

aopy.utils.base.nextpow2(x)

Next higher power of 2. It is often useful for finding the nearest power of two sequence length for FFT operations.

Parameters:

x (int or float) – input number

Returns:

the first P such that 2**P >= abs(x).

Return type:

int

aopy.utils.base.print_progress_bar(count, total, status='')

Parameters:

• count (num) – current progress count

• total (int) – total count, i.e. what count is at 100%

• status (str, optional) – printed status message. Defaults to ‘’.

aopy.utils.base.reindex_targets(target_locations, target_idxs, start_angle=1.9634954084936207, clockwise=True, bins=8, debug=True)

Reindex target indices based on their angular location. Default behavior is to place target 1 at the top and index a total of 8 targets clockwise.

Parameters:

• target_locations (ntarg, 2) – List or array of 2D target locations

• target_idxs (ntarg,) – Original target indices

• start_angle (float, optional) – Starting angle for binning in radians. Default is -3pi/4.

• clockwise (bool, optional) – If True, bins are assigned in clockwise order. The first bin is ahead of the start angle in this direction. Default is True.

• bins (int, optional) – Number of angular bins. Default is 8.

• debug (bool, optional) – If True, plot the original and new target indices. Default is True.

Returns:

Array of new bin indices corresponding to each target location.

Return type:

(ntarg,) int

Examples

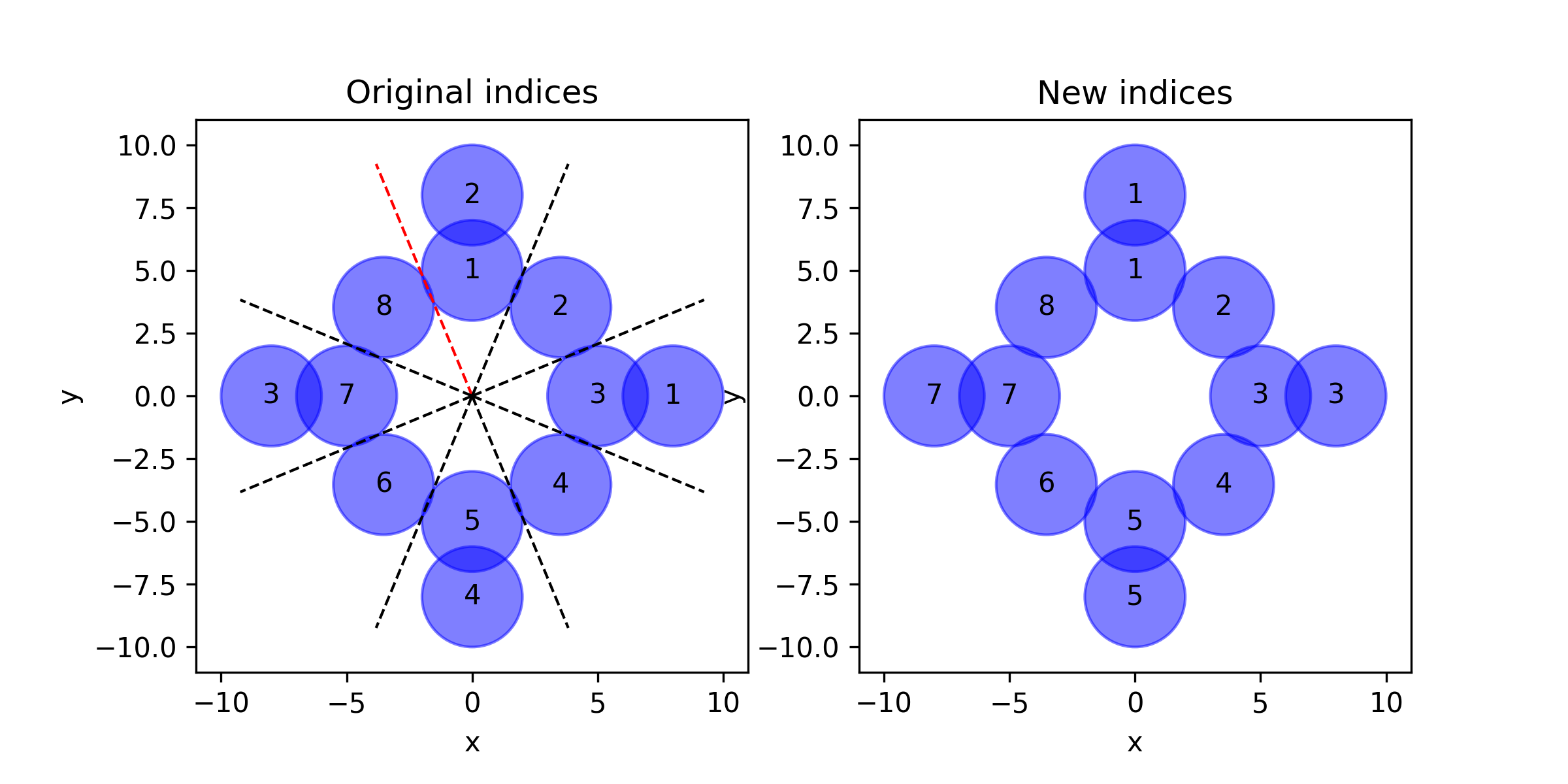

Given a set of target locations and their original indices, reindex them based on their angular location and plot the original and new indices.

target_locations = [[5,0], [3.53, 3.53], [0,5], [-3.53,3.53],
                            [-5,0], [-3.53,-3.53], [0,-5], [3.53,-3.53],
                            [8,0], [0,8], [-8,0], [0,-8]]
target_idxs = np.array([3,2,1,8,7,6,5,4,1,2,3,4])
reindex_targets(target_locations, target_idxs)

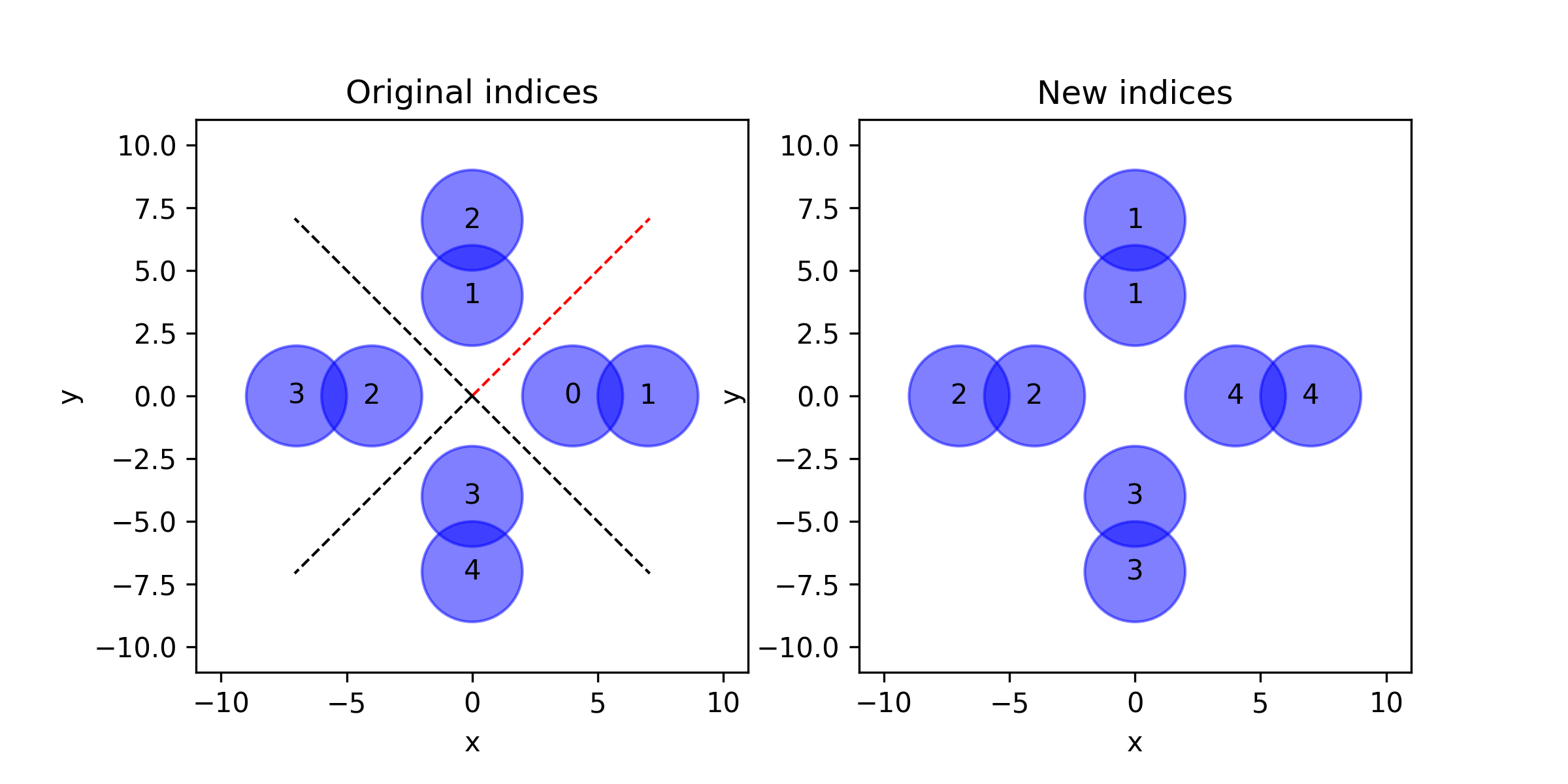

target_locations = [[4,0], [0,4], [-4,0], [0,-4],
                            [7,0], [0,7], [-7,0], [0,-7]]
target_idxs = np.array([0,1,2,3,1,2,3,4])
reindex_targets(target_locations, target_idxs,
                start_angle=np.pi/4, clockwise=False, bins=4)

aopy.utils.base.save_test_signal_ecube(data, save_dir, voltsperbit, datasource='Headstages')

Create a binary file with eCube formatting using the given data

Parameters:

• data (nt, nch) – test_signal to save

• save_dir (str) – where to save the file

• voltsperbit (float) – gain of the data you are creating

• datasource (str) – eCube source from which you want the data to be labeled (i.e. Headstages, AnalogPanel, or DigitalPanel)

Returns:

filename of the new data

Return type:

str

aopy.utils.base.scale_data_by_p_value(data, p, k=100, p0=0.08)

Scale data by a sigmoid function of p-value. Useful for visualizing data maps generated with p-values, to emphasize significant values. See https://www.science.org/doi/full/10.1126/scitranslmed.aay4682 for an example.

Parameters:

• data (nch,) – per-channel data to scale

• p (nch,) – p-values corresponding to data

• k (float, optional) – steepness of the sigmoid. Default 100.

• p0 (float, optional) – midpoint of the sigmoid. Default 0.08.

Returns:

scaled data

Return type:

(nch,) array

Examples

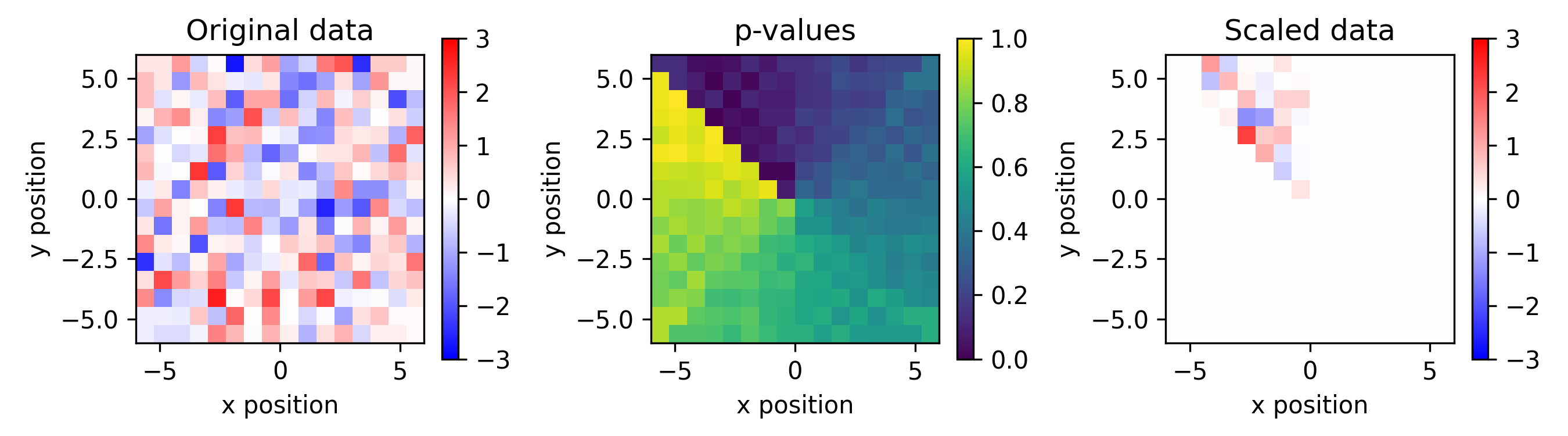

Given a 240-channel map of p-values and corresponding data from an ECoG array, plot the original data, p-values, and scaled data

p = np.linspace(0, 1, 240)
data = np.random.randn(240)
scaled_data = scale_data_by_p_value(data, p, k=100, p0=0.08)

plt.figure(figsize=(9,2.5))
plt.subplot(1,3,1)
im = aopy.visualization.plot_ECoG244_data_map(data, elec_data=True)
im.set_clim(-3, 3)
plt.colorbar(im)
plt.title("Original data")
plt.subplot(1,3,2)
im = aopy.visualization.plot_ECoG244_data_map(p, cmap='viridis', elec_data=True)
plt.colorbar(im)
plt.title("p-values")
plt.subplot(1,3,3)
im = aopy.visualization.plot_ECoG244_data_map(scaled_data, elec_data=True)
im.set_clim(-3, 3)
plt.colorbar(im)
plt.title("Scaled data")
plt.tight_layout()

aopy.utils.base.segment_array(arr, category, duplicate_endpoints=False)

Segments an array into subarrays based on a corresponding category array.

Parameters:

• arr (nt,) – The array to segment.

• category (nt,) – An array of the same length as arr containing a category label for each element in the corresponding array.

• duplicate_endpoints (bool, optional) – if True, each subsequent subarray will start with the last element of the preceding subarray.

Returns:

Tuple containing:

segments (list of arrays): A list of subarrays of arr, where each subarray corresponds to a unique value in category.

segmented_category (list of arrays): An array of the same length as segments, where each element corresponds to the category label for the corresponding subarray in segments.

Return type:

tuple

aopy.utils.base.sync_timestamp_offline(timestamp, on_times, on_times_main)

Synchroniza timestamps with timestamps in another stream

Args

timestamps (nt) : timestamps in the auxiliary stream that should be synchronized to main stream on_time (2) : the first and last times when sync pulses come to the auxiliary stream in the recording on_time_main (2) : the first and last times when sync pulses come to the main stream in the recording

Retuen:

tuple: tuple containing:

sync_timestamps (nt): synchronized timestamps

scaling (float): scaling factor between streams

Memory

aopy.utils.memory.get_memory_available_gb()

Get the available system memory in gigabytes. Only works on linux platforms.

Note

The results of this function are equivalent to the terminal commands: * “grep MemAvailable /proc/meminfo” -> available memory * “grep MemTotal /proc/meminfo” -> total memory

Returns:

number of gigabytes of available system memory

Return type:

int

aopy.utils.memory.get_memory_limit_gb()

Get the memory resource limit in gigabytes. Only works on linux platforms.

Returns:

upper limit of memory available to python in gigabytes

Return type:

int or None

aopy.utils.memory.release_memory_limit()

Unset any memory resource limit that may have been applied. Only works on linux platforms.

aopy.utils.memory.set_memory_limit_gb(size_gb)

Set a memory resource limit in gigabytes. Only works on linux platforms.

Note

This function sets a soft limit, not a hard limit. The soft limit is a value upon which the operating system will restrict memory usage by the process (python, in this case). A true upper bound on the memory values can be defined by the hard limit. However, although the hard limit can be lowered, it can never be raised by user processes (even if the process lowered itself) and is controlled by a system-wide parameter set by the system administrator. Nevertheless, the soft limit should serve to raise a MemoryError whenever python exceeds the setting.

Parameters:

size_gb (int) – upper limit of memory that will be made available to python in gigabytes
